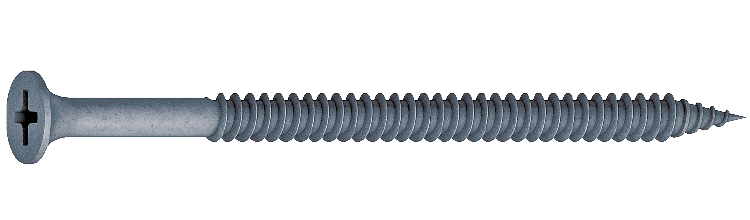

Isoleringsskrue Dabo VHT-R-4,8

Til stål max 0,75mm samt træ

ETA-godkendt isoleringsskrue til montering af tagmembran mod underkonstruktioner i stål og træ. skarp spids

Overfladebehandlet isoleringsskrue Dabo VHT med PH-kærv. Anvendes sammen med isoleringsholdere til at fastgøre tagmembraner gennem isolering til stål eller træ, også i passende kombination med Ejot isoleringsskiver. Skarp spids til stål max 0,75 mm.

Materiale: Stål
Overfladebehandling: Climadur
Egenskaber: Forsænket hoved og borespids
Korrosivitetsklasse

Monteringsvejledning

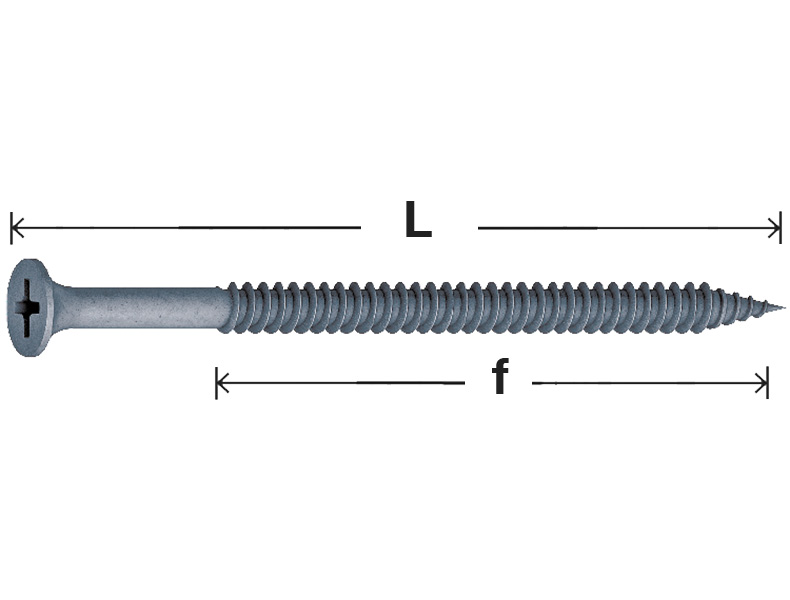

product.sketchpicture.titletext

Dokument

Produktblad

Isoleringsskrue Dabo VHT-R-4,8.pdf
Art. Nr. Dimension Diameter, mm Længde, L, mm Bit type Borkap., mm Antal
905924 4,8x35 4,8 35 PH2 0,75 500
Installasjonsparametere
Art. Nr.
905924
Dimension
4,8x35
Diameter, mm
4,8
Længde, L, mm
35
Bit type
PH2
Borkap., mm
0,75
Gevindlængde , f, mm
Helgängad
Materiale
Stål
Overfladebehandling
Climadur
Korrosivitetsklasse
C3
ETA/DoP
ETA-07/0013
Antal
500
Betegnelse
Isolationsskrue 4,8x35 Type C
EAN
7319619059242
Billede af Isolationsskrue 4,8x35 Type C
Last ned bilde
Artikkelark
950490 4,8x50 4,8 50 PH2 0,75 500
Installasjonsparametere
Art. Nr.
950490
Dimension
4,8x50
Diameter, mm
4,8
Længde, L, mm
50
Bit type
PH2
Borkap., mm
0,75
Gevindlængde , f, mm
Helgängad
Materiale
Stål
Overfladebehandling
Climadur
Korrosivitetsklasse
C3
ETA/DoP
ETA-07/0013
Antal
500
Betegnelse
Isolationsskrue 4,8x50 Type C
EAN
7319619504902
Billede af Isolationsskrue 4,8x50 Type C
Last ned bilde
Artikkelark
905909 4,8x60 4,8 60 PH2 0,75 500
Installasjonsparametere
Art. Nr.
905909
Dimension
4,8x60
Diameter, mm
4,8
Længde, L, mm
60
Bit type
PH2
Borkap., mm
0,75
Gevindlængde , f, mm
Helgängad
Materiale
Stål
Overfladebehandling
Climadur
Korrosivitetsklasse
C3
ETA/DoP
ETA-07/0013
Antal
500
Betegnelse
Isolationsskrue 4,8x60 Type C
EAN
7319619059099
Billede af Isolationsskrue 4,8x60 Type C
Last ned bilde
Artikkelark
950495 4,8x70 4,8 70 PH2 0,75 500
Installasjonsparametere
Art. Nr.
950495
Dimension
4,8x70
Diameter, mm
4,8
Længde, L, mm
70
Bit type
PH2
Borkap., mm
0,75
Gevindlængde , f, mm
60
Materiale
Stål
Overfladebehandling
Climadur
Korrosivitetsklasse
C3
ETA/DoP
ETA-07/0013
Antal
500
Betegnelse
Isolationsskrue 4,8x70 Type C
EAN
4061245012339
Billede af Isolationsskrue 4,8x70 Type C
Last ned bilde
Artikkelark
950500 4,8x80 4,8 80 PH2 0,75 250
Installasjonsparametere
Art. Nr.
950500
Dimension
4,8x80
Diameter, mm
4,8
Længde, L, mm
80
Bit type
PH2
Borkap., mm
0,75
Gevindlængde , f, mm
60
Materiale
Stål
Overfladebehandling
Climadur
Korrosivitetsklasse
C3
ETA/DoP
ETA-07/0013
Antal
250
Betegnelse
Isolationsskrue 4,8x80 Type C
EAN
7319619505008
Billede af Isolationsskrue 4,8x80 Type C
Last ned bilde
Artikkelark
905917 4,8x90 4,8 90 PH2 0,75 250
Installasjonsparametere
Art. Nr.
905917
Dimension
4,8x90
Diameter, mm
4,8
Længde, L, mm
90
Bit type
PH2
Borkap., mm
0,75
Gevindlængde , f, mm
60
Materiale
Stål
Overfladebehandling
Climadur
Korrosivitetsklasse
C3
ETA/DoP
ETA-07/0013
Antal
250
Betegnelse
Isolationsskrue 4,8x 90 Type C
EAN
4061245012315
Billede af Isolationsskrue 4,8x 90 Type C
Last ned bilde
Artikkelark
950502 4,8x100 4,8 100 PH2 0,75 250
Installasjonsparametere
Art. Nr.
950502
Dimension
4,8x100
Diameter, mm
4,8
Længde, L, mm
100
Bit type
PH2
Borkap., mm
0,75
Gevindlængde , f, mm
60
Materiale
Stål
Overfladebehandling
Climadur
Korrosivitetsklasse
C3
ETA/DoP
ETA-07/0013
Antal
250
Betegnelse
Isolationsskrue 4,8x100 Type C
EAN
7319619505022
Billede af Isolationsskrue 4,8x100 Type C
Last ned bilde
Artikkelark
950506 4,8x120 4,8 120 PH2 0,75 250
Installasjonsparametere
Art. Nr.
950506
Dimension
4,8x120
Diameter, mm
4,8
Længde, L, mm
120
Bit type
PH2
Borkap., mm
0,75
Gevindlængde , f, mm
60
Materiale
Stål
Overfladebehandling
Climadur
Korrosivitetsklasse
C3
ETA/DoP
ETA-07/0013
Antal
250
Betegnelse
Isolationsskrue 4,8x120 Type C
EAN
7319619505060
Billede af Isolationsskrue 4,8x120 Type C
Last ned bilde
Artikkelark
950511 4,8x140 4,8 140 PH2 0,75 200
Installasjonsparametere
Art. Nr.
950511
Dimension
4,8x140
Diameter, mm
4,8
Længde, L, mm
140
Bit type
PH2
Borkap., mm
0,75
Gevindlængde , f, mm
60
Materiale
Stål
Overfladebehandling
Climadur
Korrosivitetsklasse
C3
ETA/DoP
ETA-07/0013
Antal
200
Betegnelse
Isolationsskrue 4,8x140 Type C
EAN
7319619505114
Billede af Isolationsskrue 4,8x140 Type C
Last ned bilde
Artikkelark
950512 4,8x160 4,8 160 PH2 0,75 200
Installasjonsparametere
Art. Nr.
950512
Dimension
4,8x160
Diameter, mm
4,8
Længde, L, mm
160
Bit type
PH2
Borkap., mm
0,75
Gevindlængde , f, mm
60
Materiale
Stål
Overfladebehandling
Climadur
Korrosivitetsklasse
C3
ETA/DoP
ETA-07/0013
Antal
200
Betegnelse
Isolationsskrue 4,8x160 Type C
EAN
7319619505121
Billede af Isolationsskrue 4,8x160 Type C
Last ned bilde
Artikkelark
950522 4,8x180 4,8 180 PH2 0,75 200
Installasjonsparametere
Art. Nr.
950522
Dimension
4,8x180
Diameter, mm
4,8
Længde, L, mm
180
Bit type
PH2
Borkap., mm
0,75
Gevindlængde , f, mm
60
Materiale
Stål
Overfladebehandling
Climadur
Korrosivitetsklasse
C3
ETA/DoP
ETA-07/0013
Antal
200
Betegnelse
Isolationsskrue 4,8x180 Type C
EAN
7319619505220
Billede af Isolationsskrue 4,8x180 Type C
Last ned bilde
Artikkelark
950513 4,8x200 4,8 200 PH2 0,75 200
Installasjonsparametere
Art. Nr.
950513
Dimension
4,8x200
Diameter, mm
4,8
Længde, L, mm
200
Bit type
PH2
Borkap., mm
0,75
Gevindlængde , f, mm
60
Materiale
Stål
Overfladebehandling
Climadur
Korrosivitetsklasse
C3
ETA/DoP
ETA-07/0013
Antal
200
Betegnelse
Isolationsskrue 4,8x200 Type C
EAN
7319619505138
Billede af Isolationsskrue 4,8x200 Type C
Last ned bilde
Artikkelark
